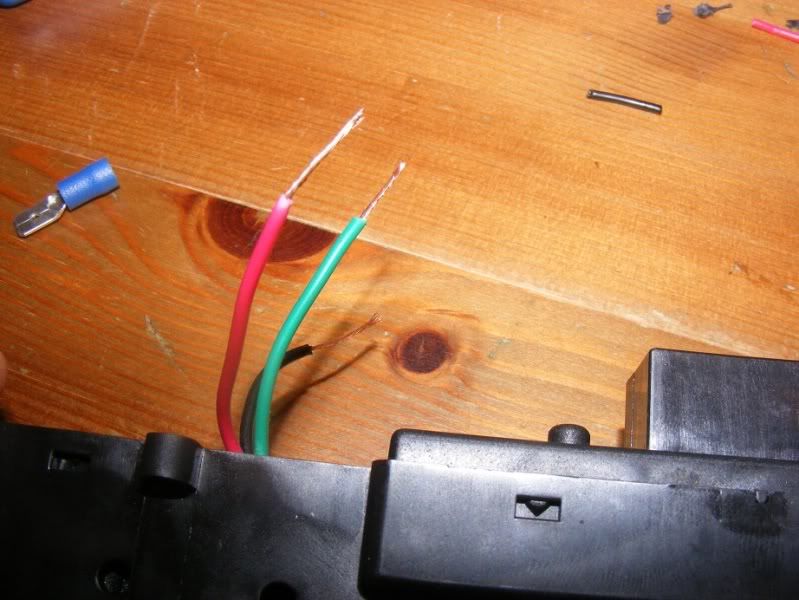

Step 31 - I switched the bullet connectors for spade clips as I had more of these. Simply snip off the old ones (picture 1), strip and twist the wires (picture 2), poke this into a female spade clip (picture 3) and crimp with the tool shown which is much better than pliers (picture 4).






JSeaman

New member
Joined
May 3, 2009
Messages
178
Reaction score
0
Points
0
Step 32 - Now, to make a little wiring loom to connect to the car (note you could have just left the wires long but I like having it modular so you can plug different bits in. Cut the spare wire from the switch and terminate one end with a female spade slip as shown then plug it onto the loom from the control box. Split one of the wires in half to make two shorter leads and you have your loom. Finish by fitting a male spade clip to the ends as shown in the final picture. Note I always fit a female spade slip where voltage feeds something and a male spade clip for the consumer device so when you are unplugging things you have no danger of dropping a live wire and shorting something






JSeaman

New member
Joined
May 3, 2009
Messages
178
Reaction score
0
Points
0


Step 33 - Hook up to a car battery to test everything works (I did this a few times as I was working), 3 wires are as follows:

1. Green = Negative
2. Black = Permanent live (+12V that keeps the time ticking even when the display is off)
3. Red = Switched live (+12V when you want to light the clock up)



Step 34 - Fit the 6 screws to hold the two parts of the assembly together



JSeaman

New member
Joined
May 3, 2009
Messages
178
Reaction score
0
Points
0
Step 35 - Now we have made our clock, return to the car to wire it in. Start with the standard connector (picture 1), grip and slide the heatshrink back up the loom so you expose more of the wire (pictures 2 and 3).





Step 36 - Find the black wire in the far corner of the loom (circled on the first picture) and cut it about 3 inches from the connector. Strip the wires and twist them together then fit a female spade clip. This is our ground connection so should be connected to the green wire from the clock (simply plug the two spade clips together)



JSeaman

New member
Joined
May 3, 2009
Messages
178
Reaction score
0
Points
0
Step 37 - Now we will do the switched live - this is a white wire with a red stripe in the loom. This is our switched live and should connect to the red wire from the clock. Again, cut, twist then crimp together (note picture 3 onwards shows the process of splicing a wire but the first two photos show the wire you are using for the switched live)






JSeaman

New member
Joined
May 3, 2009
Messages
178
Reaction score
0
Points
0
Step 38 - Our final connection is the permanent live (connects to the clock black wire). For this we will use the stereo's feed which is at the top left on the white plug to the head unit - it is brown with a grey stripe as shown in the first picture. This is bigger so you have to combine the clock's wire with the stereo's. As usual put the female clip on the line coming in as shown in picture 2. Twist the two wires together (clock black and stereo input brown) as shown in the third picture then connect them all up (picture 4).






JSeaman

New member
Joined
May 3, 2009
Messages
178
Reaction score
0
Points
0
Step 39 - Check your wiring, you should have:

1. Clock green wire (ground) going to the black wire on the clock unit loom
2. Clock black wire (permanent live) going to the brown with grey stripe on the stereo loom
3. Clock red wire (switched live) going to the white with red stripe on the clock unit loom



Step 40 - Now slide the clock unit into place and screw it down




JSeaman

New member
Joined
May 3, 2009
Messages
178
Reaction score
0
Points
0
Step 41 - Pop the ignition on and check everything works as it should




Step 42 - Use some electrical insulation tape to wrap the loom




JSeaman

New member
Joined
May 3, 2009
Messages
178
Reaction score
0
Points
0
Step 43 - Refit the centre console and screw in place




Step 44 - Ease the wooden trim into position being careful not to stress it (don't forget the gear lever should be in neutral to make it fit easily)



Step 45 - Start off the plastic wing nuts
